IEC61850-3 Ethernet Switches

EKI-8528-4XFL

IEC 61850-3 L2 Modular Managed Switch

  • 3 x 8 Gigabit ports module slots + 4 x 10G SFP+ ports
  • Dual power input options for 110/220V AC or 24-48V DC power module
  • Fully layer 2 and TSN-enabled functions
  • Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
  • Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
  • -40 ~ 75˚C wide-range operating temperature

認證：

技術資源連結：

產品型錄 Download 3D Model 技術文件下載
  • IEC 61850-3 L2 Modular Managed Switch

規格

Certification
Ethernet Standard
  • IEEE 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1X, 802.1D, 802.1s, 802.1w, 802.1Q, 802.1ab
Vibration
  • IEC 60068-2-6
Freefall
  • IEC 60068-2-32
Shock
  • IEC 60068-2-27
EMS
  • -
EMI
  • CE, FCC Class A
EMC
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
  • EN 62368-1
Environment
Temperature (Max. Operating)
  • 75°C (167°F)
Temperature (Min. Operating)
  • -40°C (-40°F)
Relative Humidity
  • 10~95%
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Operating Humidity
  • -
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45/SFP Combo Port Speed
  • -
RJ-45/SFP Combo Port Number
  • -
Fiber Port Optical Mode
  • -
Fiber Transmission Speed
  • 100/1000 Mbps; 10G
Fiber Port Number
  • 24 + 4
RJ-45 Port Number
  • 24
Fiber Transmission Distance
  • Depends on fiber module
Fiber Port Connector Type
  • SFP+ cage
Fiber Port Interface
  • SFP+
RJ-45 Transmission Distance
  • 100 m
Ethernet Standard
  • -
RJ-45 Port Connector Type
  • RJ-45
RJ-45 Transmission Speed
  • 10/100/1000 Mbps
Mechanism
Mounting (Panel)
  • -
Enclosure (Plastic)
  • -
Mounting (Pole Mount)
  • -
Mounting (Stack)
  • -
Mounting (Wall)
  • -
Mounting (Rack Mount)
  • Yes
Mounting (DIN-rail)
  • -
Weight
  • 5.5 kg
IP Rating
  • IP30
Dimensions (W x H x D)
  • 442 x 44 x 352 mm
MTBF
Method
  • -
Time
  • -
PoE Information
Support PoE
  • -
PoE Output
  • -
PoE Budget
  • -
PoE Port Number
  • -
Power
Redundant Dual Inputs
  • -
Power Input (Battery)
  • -
Power Input (PoE)
  • -
Power Input (AC)
  • 100 ~ 240 VAC
Power Connector Type
  • 3-pin Power Connector
Power Input (DC)
  • 24 ~ 48 VDC
Power Consumption
  • Max. 60W
Protection
Reverse Polarity
  • Present
Overload Current
  • -
Switch Properties
Jumbo Frame
  • 10K bytes
Switch Fabric Speed
  • 128Gbps
Packet Buffer Size
  • 32M bit
MAC Table Size
  • 32K
Warranty
Warranty Period
  • 5 years

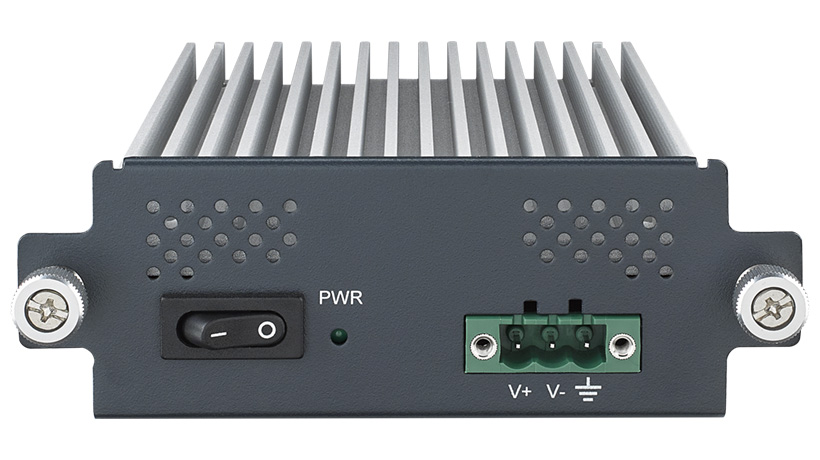

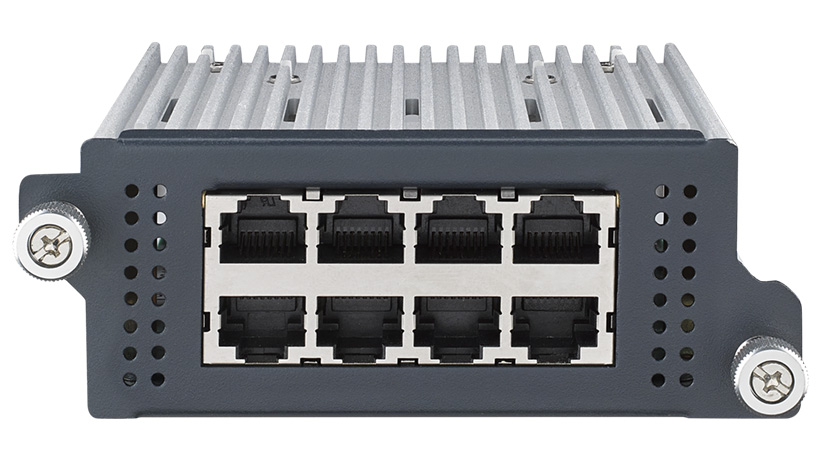

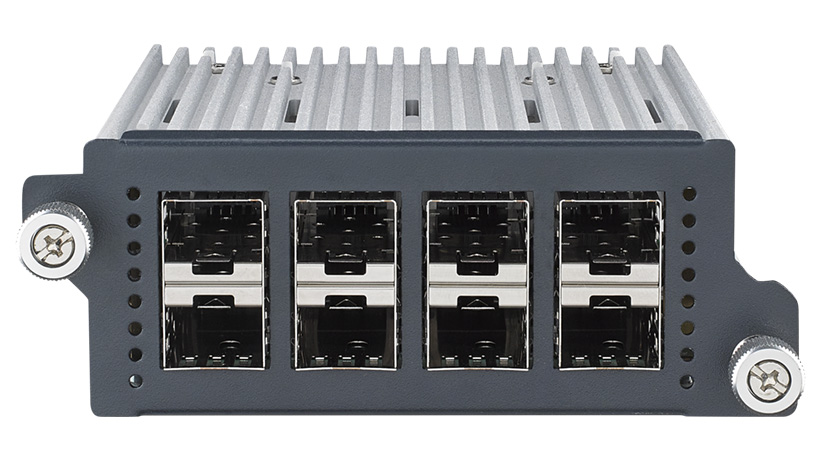

配件

特點和優勢

Advancing Substations Automation with IEC 61850 Ethernet Switches
Flexible and High-Density Port Count

Comprehensive IEC 61850-3 Certified Portfolio

  • Layer 2 and layer 3 Ethernet switches.
  • Modular design enables versatile applications.
  • IoT expansion modules allow full-featured Ethernet switches.
Reliable Communication with Time Synchronization and Accuracy

Network Redundancy (X-Ring Pro)

  • Ensures the normal function of critical systems. Our Ethernet switches offer X-Ring Pro, network redundancy with seamless fail-over features, and redundant components.
Flexible and High-Density Port Count

Cyber-Secure Connectivity

  • Complies with IEC 62443 standards for cybersecurity.
Reliable Communication with Time Synchronization and Accuracy

IEC 61850 QoS to Meet Critical Packet Prioritization

  • Prioritizes transmission of critical packets such as GOOSE and PTP.
High Port Density with 10G Uplink Capability

High Port Density with 10G Uplink Capability

Equipped with 28 Gigabit SFP fiber ports or Gigabit RJ-45 ports and four 10 GbE SFP fiber ports, allowing flexible deployment across long-distances as well as local connections.

Robust Design with Wide Temperature and Redundant Power Input

  • Operates in extreme temperatures from -40°C to 85°C, ideal for outdoor and industrial settings.

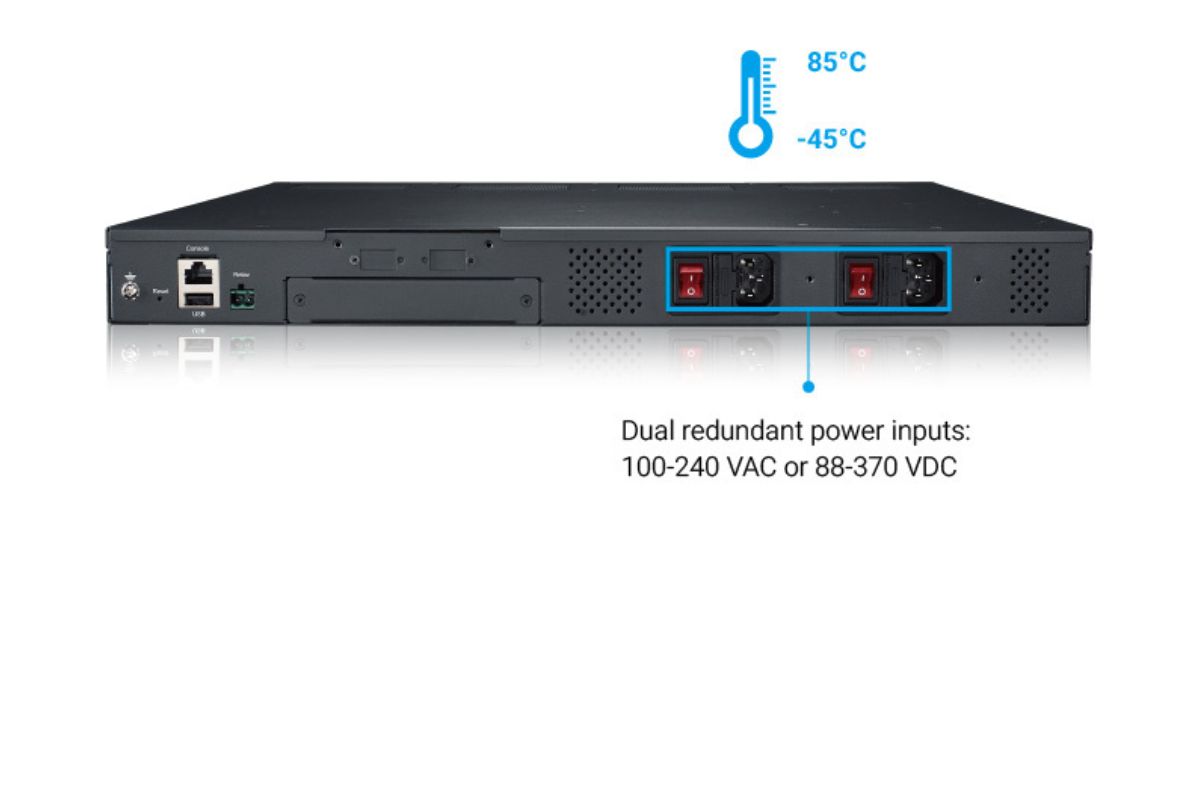

  • Dual redundant power inputs (100-240 VAC or 88-370 VDC) ensures uninterrupted operation and power reliability.

Robust Design with Wide Temperature and Redundant Power Input
Comprehensive Management and Security

Comprehensive Management and Security

  • Features comprehensive management options, including web-based management, SNMP, SSH, and CLI, facilitating easy configuration and monitoring.
  • Offers robust security features such as IP and MAC-based port security, 802.1X authentication, RADIUS support, and HTTPS for secure network access.

Maximize Substation Efficiency with EKI-8528

Comprehensive IEC 61850 Certified Portfolio

Flexible and High-Density Port Count

  • Up to 28 ports and 10 GbE transmission speeds.

  • RJ45 or SPF port module options.

Network Redundancy (X-Ring Pro)

Reliable Communication with Time Synchronization and Accuracy

  • Precision Time Protocol (PTP), standardized as IEEE 1588.

  • Supports time stamping of data.

  • Supports SNTP/NTP.

Cyber-Secure Connectivity

HSR/PRP with Zero Package Loss Solution

  • Redundancy for smart grid networks ensure a stable energy supply.

Advantech IoT Academy

Mastering IEC 61850 Networking Essentials & Benefits of Advantech Modular Switch EKI-8528

Mastering IEC 61850 Networking Essentials & Benefits of Advantech Modular Switch EKI-8528

We'll guide you through IEC 61850 structure, from station level to process level and Advantech’s IEC 61850 certified module Ethernet switch EKI-8528.

Understand the Implementation of HSR/PRP Protocol in Managed Ethernet Switches

Understand the Implementation of HSR/PRP Protocol in Managed Ethernet Switches

This course will focus on the introduction and operation of L2 managed switches and their functions about the HSR/PRP protocol.
