UTC-515 Series

UTC-515J-IOT

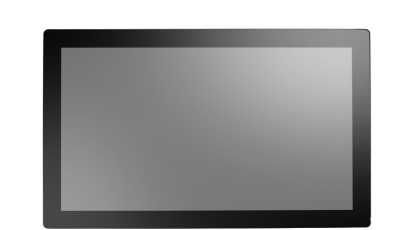

15.6" PCAP Touch Computer with Win 11 LTSC, Intel Celeron J6412 CPU, 8GB RAM, 256GB SSD, Wi-Fi, US power cord, Black

  • Low-power, fanless system design
  • Built-in Intel® Celeron® J6412 CPU
  • 15.6" monitor with 16:9 widescreen display. Optional Full HD (1920 x 1080) LCD panel
  • All-in-one aluminum extrusion design
  • Supports both landscape and portrait screen orientations
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Side groove design for integrating peripherals
  • Support TPM 2.0
  • Supports Windows, Android, Linux, and ChromeOS Flex

Support Links:

Technical Downloads
  • 15.6" PCAP Touch Computer with Win 11 LTSC, Intel Celeron J6412 CPU, 8GB RAM, 256GB SSD, Wi-Fi, US power cord, Black

Specifications

Display
Size
  • 15.6" TFT LCD (LED backlight)
Max. Resolution
  • 1366 x 768
Brightness
  • 400 cd/m²
Touch Screen
Type
  • Projected Capacitive
Processor System
CPU
  • Intel® Celeron® J6412
RAM
  • 8G DDR4
Storage
  • 256GB SSD
OS
  • Windows 11 IoT Enterprise 64bit
TPM
  • TPM 2.0
I/O Interface
USB Port
  • 4 x USB3.2 Gen2 (10Gbps)
Output
  • 1 x HDMI / 1 x DP
Audio
  • 1 x Line-out, 1 x Mic-in
Ethernet
  • 2 x Gigabit Ethernet (Supports Wake on LAN)
Speaker
  • 2 x 2W Speaker
Extendable Slot
  • 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module
    1x M-Key support SATA M.2 2242 module
Serial Port
  • 2 x COM (RS-232)
Power
Input Rating
  • 12 V/7 A (84 W ITE Adapter)
Environment
Operating Temperature
  • -10 ~ 50 °C
System Protection
  • IP65 front panel
Operating Humidity
  • 95% @ 40 °C/104 °F, non-condensing
Certification
  • CE (RED Compliance), EN 61000-6-2: 2005 /AC: 2005, FCC, UL, CB, CCC, BSMI
Shock
  • Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
Vibration
  • Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD

Accessories
