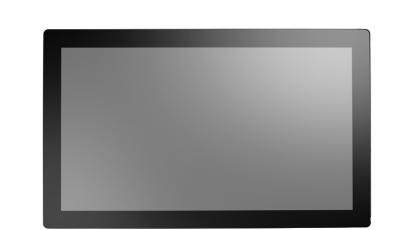

UTC-515 Series

UTC-515I-IOT

15.6" PCAP Touch Computer with Win 11 LTSC, Intel i5-1145G7E CPU, 16GB RAM, 512GB SSD, Wi-Fi, US power cord, Black

  • Low-power, fanless system design
  • Built-in Intel® Core™ i5-1145G7E (UTC-515I)
  • 15.6" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • All-in-one aluminum extrusion design
  • Supports both landscape and portrait screen orientations
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Side groove design for integrating peripherals
  • Optional Full HD (1920 x 1080) LCD panel

Certifications:

Support Links:

Technical Downloads
  • 15.6" PCAP Touch Computer with Win 11 LTSC, Intel i5-1145G7E CPU, 16GB RAM, 512GB SSD, Wi-Fi, US power cord, Black

Specifications

Display
Size
  • 15.6" TFT LCD
Max. Resolution
  • 1366 x 768
Brightness
  • 400 cd/m²
Touch Screen
Type
  • Projected Capacitive
Processor System
CPU
  • Intel® Core™ i5-1145G7E
RAM
  • 16GB DDR4
Storage
  • 512GB SSD
OS
  • Windows 11 IoT Enterprise 64bit
TPM
  • TPM 2.0
I/O Interface
Serial Port
  • 2 x COM (RS-232)
USB Port
  • 4 x USB 3.2, 1 x USB Type C
Ethernet
  • 2 x Gigabit Ethernet (Supports Wake on LAN)
Output
  • 1 x HDMI / 1 x DP
Audio
  • 1 x Line-out, 1 x Mic-in
Speaker
  • 2 x 2W Speaker
Extendable Slot
  • 1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x M.2 M-Key 2280 (optional SATA)
Power
Input Rating
  • 12 ~ 24V, 7 A (84W ITE adapter)
Environment
System Protection
  • IP65 front panel
Operating Temperature
  • 0~40° C
Operating Humidity
  • 10 ~ 95% @ 40°C non-condensing
Vibration
  • 0.5G
Shock
  • 10G peak acceleration (11 msec. duration)
Certification
  • CE (RED Compliance), FCC, CB, UL, CCC,
    BSMI
