USC-360 Series

USC-360N

15.6" ultra-slim all-in-one POS featuring Intel® Core™ N-Series performance with efficient power consumption for modern POS applications

  • Intel® Core™ N-Series platform delivering higher performance with lower power consumption
  • 15.6" 16:9 P-CAP touch display with Full HD resolution
  • Supports Windows 11 IoT LTSC and Linux
  • Enriched I/O on system with additional extension I/O integrated into the stand
  • Toolless stand design supporting easy service and customer-facing second display installation
  • Flexible mounting options including stand, VESA, and pole mount, with support for landscape and portrait orientation
  • Supports integrated or rear-mounted customer-facing second display in multiple sizes and orientations

Certifications:

Support Links:

Datasheet Teknik İndirmeler
  • 15.6" ultra-slim all-in-one POS featuring Intel® Core™ N-Series performance with efficient power consumption for modern POS applications

Specifications

Processor System
CPU
  • Intel® Processor N150
  • Intel® Processor CoreTM 3 N355
RAM
  • 1 x SO-DIMM DDR5-4800 MHZ up to 16GB
  • 1 x SO-DIMM DDR5-4800 MHZ up to 16GB
Storage
  • 1 x M.2 SSD
  • 1 x M.2 SSD
OS
  • Windows 11, Linux
  • Windows 11, Linux
I/O Interface
USB Port
  • 3x USB-C, 2x USB 3.0
  • 3x USB-C, 2x USB 3.0
Ethernet
  • 1x RJ-45, 2.5G LAN Ethernet
  • 1x RJ-45, 2.5G LAN Ethernet
Audio
  • 2 x 2W speaker installed. 1 x Line out
  • 2 x 2W speaker installed. 1 x Line out
Power Supply
Input Voltage
  • 65W via power adapter
  • 65W via power adapter
Display
Size
  • 15.6" TFT LCD
  • 15.6" TFT LCD
Touch Screen
Type
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
Color
Color
  • Black
  • Black
Environment
Operating Temperature
  • 0~40° C
  • 0~40° C
Dimensions
Dimensions
  • 381 x 230.4 x 31.5 mm
  • 381 x 230.4 x 31.5 mm
Weight (kg)
Weight (kg)
  • 4 Kg (Net); 4.5 Kg (Gross)
  • 4 Kg (Net); 4.5 Kg (Gross)

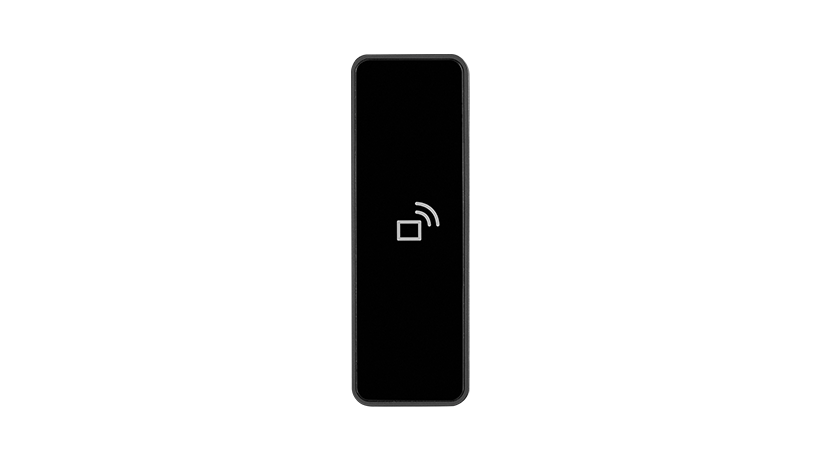

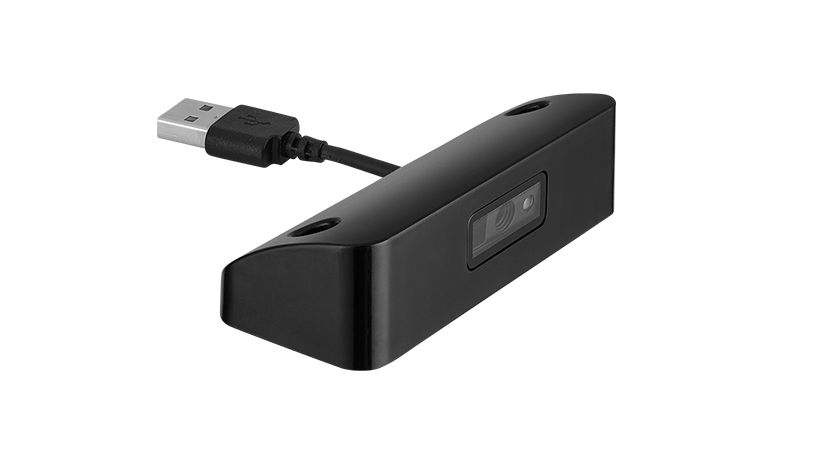

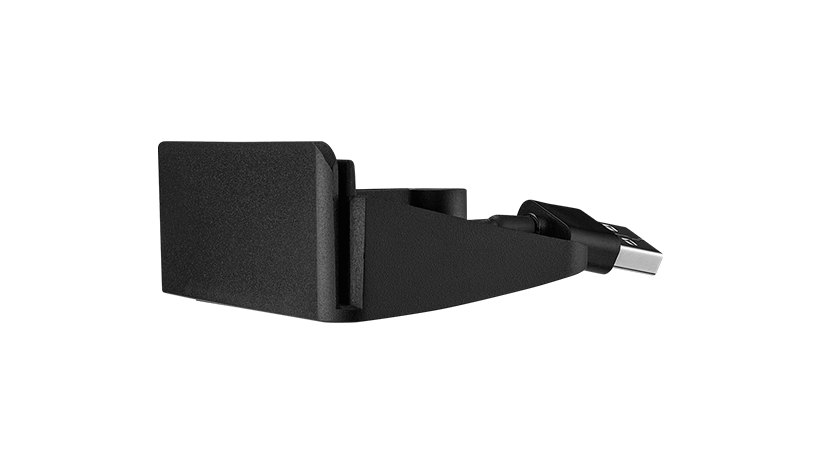

Accessories
