EKI-2000 Series

EKI-2716EI

16-port Fast Ethernet Unmanaged Switch

  • Provides 16 Fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps Auto-Negotiation
  • Supports redundant 12 ~ 48 VDC power input
  • Supports DIP Switch Configuration: QoS/BSP/VLAN
  • Supports EMC Level 4 protection for extreme outdoor environments
  • Supports wide operating temperatures from -40 to 75 °C
  • Dual power input with 12 ~48 VDC (8.4~52.8 VDC)

Support Links:

Datasheet Download 3D Model ดาวน์โหลดเอกสารทางเทคนิค
  • 16-port Fast Ethernet Unmanaged Switch

Specifications

Certification
EMI
  • CE, FCC Class A, BSMI
EMS
  • EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
Safety
  • UL 62368
Environment
Temperature (Min. Operating)
  • -40°C (-40°F)
Temperature (Max. Operating)
  • 75°C (167°F)
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
  • -
Fiber Port Interface
  • -
Fiber Port Connector Type
  • -
Fiber Transmission Distance
  • -
Fiber Transmission Speed
  • -
RJ-45 Port Number
  • 16
RJ-45 Port Connector Type
  • RJ-45
RJ-45 Transmission Distance
  • 100 m
RJ-45 Transmission Speed
  • 10/100 Mbps
Mechanism
Mounting (DIN-rail)
  • Yes
Mounting (Stack)
  • -
Mounting (Panel)
  • -
Mounting (Wall)
  • Yes
Mounting (Rack Mount)
  • -
Mounting (Pole Mount)
  • -
Dimensions (W x H x D)
  • 72 x 140 x 105 mm
Enclosure (Plastic)
  • -
IP Rating
  • IP30
Weight
  • 0.9 kg
PoE Information
PoE Port Number
  • -
PoE Budget
  • -
PoE Output
  • -
Support PoE
  • No
Power
Power Connector Type
  • 4-pin removable terminal (power)
Power Consumption
  • Max. 4.5W
Power Input (AC)
  • -
Power Input (DC)
  • 12 ~ 48 VDC, redundant dual inputs
Power Input (PoE)
  • -
Power Input (Battery)
  • -
Power Operating Current
  • 0.5A @ 12V
Redundant Dual Inputs
  • Yes
Switch Properties
Jumbo Frame
  • 2,048 bytes
MAC Table Size
  • 8K
Packet Buffer Size
  • 2M bit
Switch Fabric Speed
  • 3.2Gbps
Warranty
Warranty Period
  • 5 years
Protection
Overload Current
  • Present
Reverse Polarity
  • Present

Features & Benefits

Features & Benefits

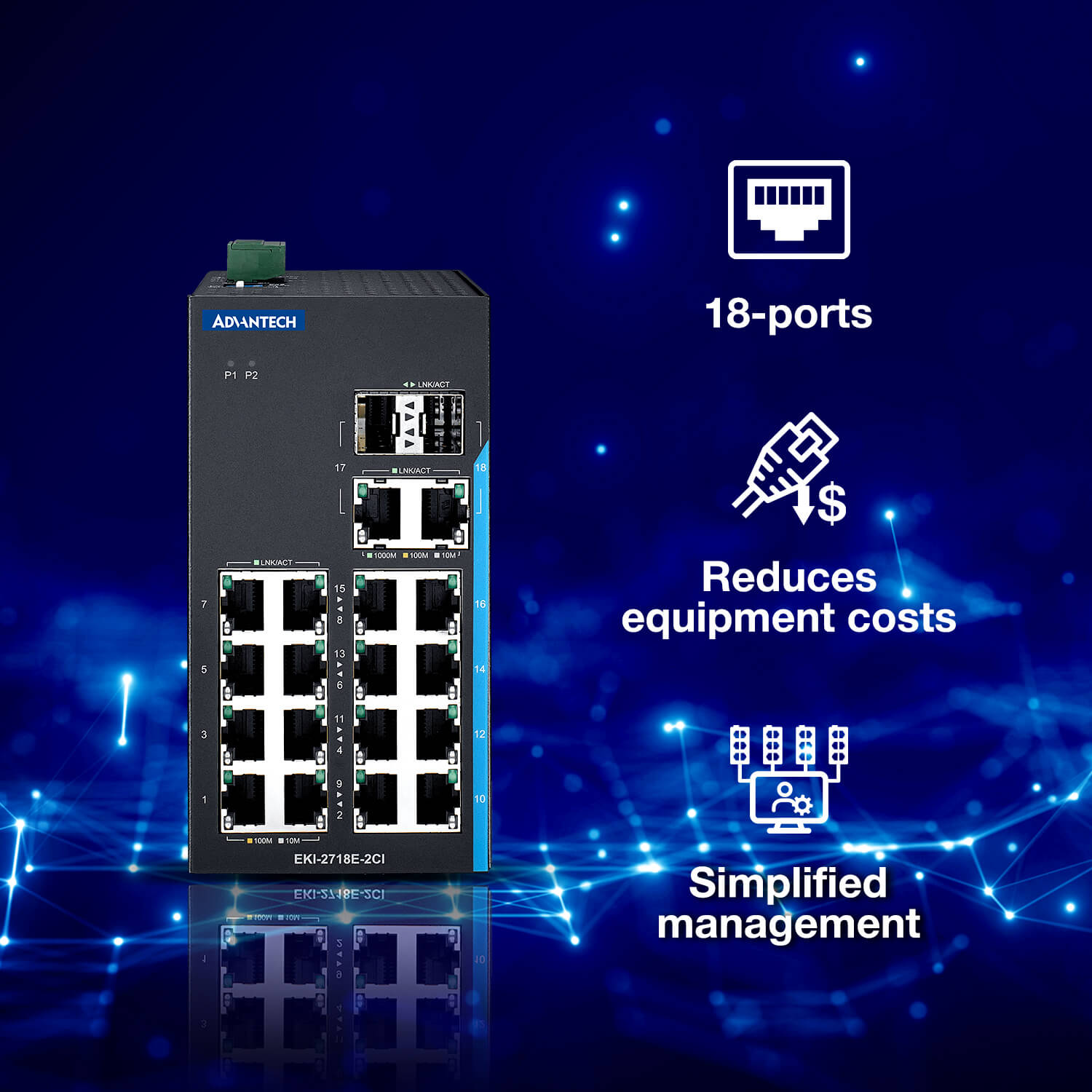

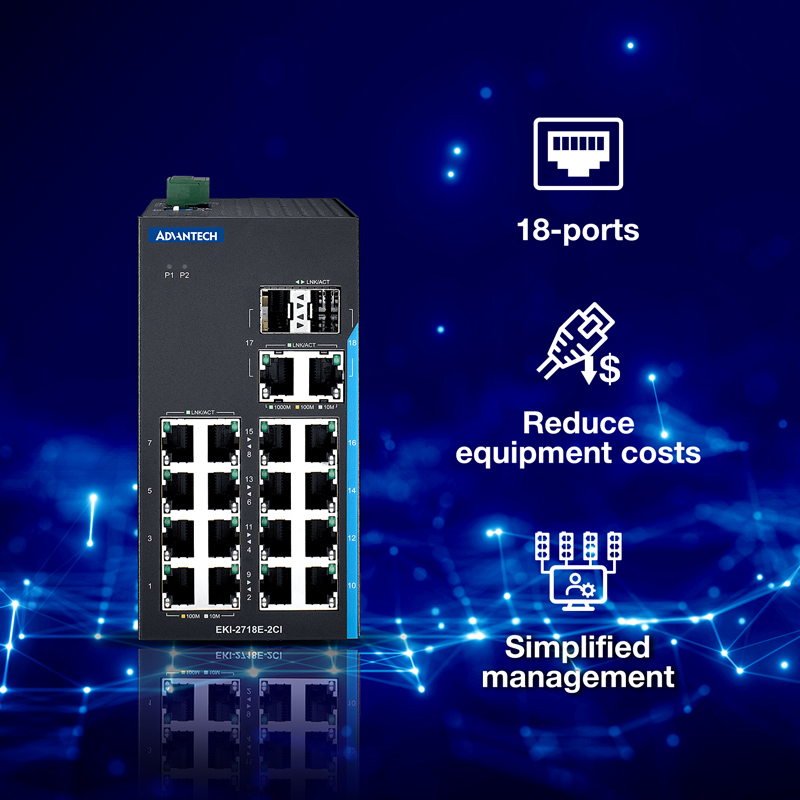

Up to 18 Ports for Port-Intensive Applications

Up to 18 Ports for Port-Intensive Applications

Designed for industries requiring high port counts, like machine builders, BESS, and EV charging, EKI-2718 and its product family offers a cost-efficient approach, enabling reliable connectivity for expanding networks.

Rugged Design with EMC Level 4 for Uninterrupted Operation

Rugged Design with EMC Level 4 for Uninterrupted Operation

With a rugged design and EMC level 4 protection, ESD, EFT, and surge protection, EKI-2718 series can resist high electromagnetic interference, ensuring uninterrupted operation in lightning-prone outdoor setups like energy storage and charging stations.

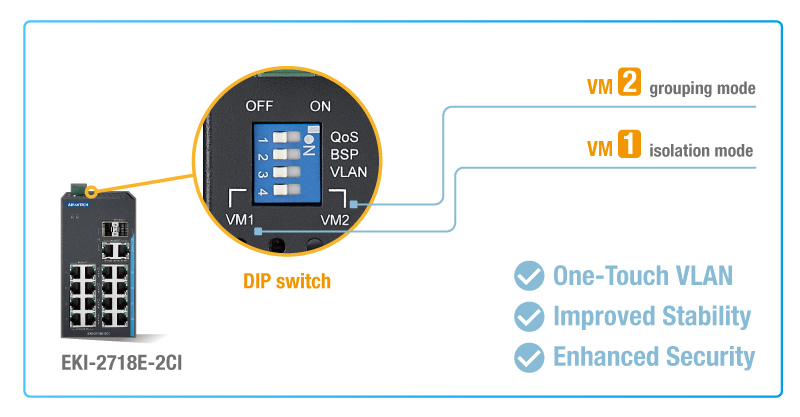

One-Touch VLAN with Easy On/Off Dip Switch

One-Touch VLAN with Easy On/Off Dip Switch

Plug-and-play port-based VLAN for group isolation:

1. VLAN Scheme I: traffic isolating for enhancing data security.

2. VLAN Scheme II: task management based on functionalities.
