UTC-307 Series

UTC-307G

7" All-in-One Touch Computer with Intel® Celeron® N3350 / Pentium® N4200 Processors

  • Low power and fanless system design
  • Built-in Intel® Celeron® N3350 / Pentium® N4200 (UTC-307G)
  • 7" monitor with 16:9 widescreen display
  • Front panel IP65 compliant
  • Supports both landscape and portrait screen orientations
  • VESA 75 mm standard mounting holes for varied mounting demand
  • Detachable plastic frame design for panel mount applications
  • PoE supported on Celeron® N3350 / Pentium® N4200 platform

Support Links:

Ficha Técnica Downloads Técnicos
  • 7" All-in-One Touch Computer with Intel® Celeron® N3350 / Pentium® N4200 Processors

Specifications

Color
Color
  • Black
  • Black
  • Black
  • Black
  • White
Display
Size
  • 7" TFT LCD
  • 7" TFT LCD
  • 7" TFT LCD
  • 7" TFT LCD
  • 7" TFT LCD
Max. Resolution
  • WVGA (800 x 480)
  • WVGA (800 x 480)
  • WVGA (800 x 480)
  • WVGA (800 x 480)
  • WVGA (800 x 480)
Brightness
  • 450 cd/m²
  • 450 cd/m²
  • 450 cd/m²
  • 450 cd/m²
  • 450 cd/m²
Touch Screen
Type
  • Projected Capacitive / Glass panel (by required)
  • Projected Capacitive / Glass panel (by required)
  • Projected Capacitive
  • Projected Capacitive
  • Projected Capacitive
Processor System
CPU
  • Intel® Celeron® N3350 1.10GHz
  • Intel® Pentium® N4200 1.10GHz
  • Intel® Celeron® N3350 1.10GHz
  • Intel® Pentium® N4200 1.10GHz
  • Intel® Pentium® N4200 1.10GHz
RAM
  • 2G DDR3L installed
  • 2G DDR3L installed
  • 2G DDR3L installed
  • 2G DDR3L installed
  • 2G DDR3L installed
Storage
  • 1 x M.2 2242 SSD
  • 1 x M.2 2242 SSD
  • 1 x M.2 2242 SSD
  • 1 x M.2 2242 SSD
  • 1 x M.2 2242 SSD
OS
  • Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04
  • Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04
  • Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04
  • Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04
  • Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04
I/O Interface
Serial Port
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
  • 2 x COM (RS-232)
USB Port
  • 2 x USB3.0, 2 x USB3.0 (optional)
  • 2 x USB3.0, 2 x USB3.0 (optional)
  • 2 x USB3.0, 2 x USB3.0 (optional)
  • 2 x USB3.0, 2 x USB3.0 (optional)
  • 2 x USB3.0, 2 x USB3.0 (optional)
Ethernet
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
  • 2 x Gigabit Ethernet (1 with PoE)
Speaker
  • 1 x 2W Speaker
  • 1 x 2W Speaker
  • 1 x 2W Speaker
  • 1 x 2W Speaker
  • 1 x 2W Speaker
Extendable Slot
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
  • 1 x M.2 key2230, 1 x M.2 key2242
Environment
Operating Temperature
  • 0~40° C
  • 0~40° C
  • 0~40° C
  • 0~40° C
  • 0~40° C
Operating Humidity
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
  • 10 ~ 95% @ 40°C non-condensing
Vibration
  • 0.5G
  • 0.5G
  • 0.5G
  • 0.5G
  • 0.5G
Shock
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
  • 10G peak acceleration (11 msec. duration)
Power
Input Rating
  • 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) /
    Optional IEEE 802.3at/30W PoE
  • 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) /
    Optional IEEE 802.3at/30W PoE
  • 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) /
    Optional IEEE 802.3at/30W PoE
  • 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) /
    Optional IEEE 802.3at/30W PoE
  • 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) /
    Optional IEEE 802.3at/30W PoE
PoE
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)
  • IEEE 802.3at/30W (Optional)

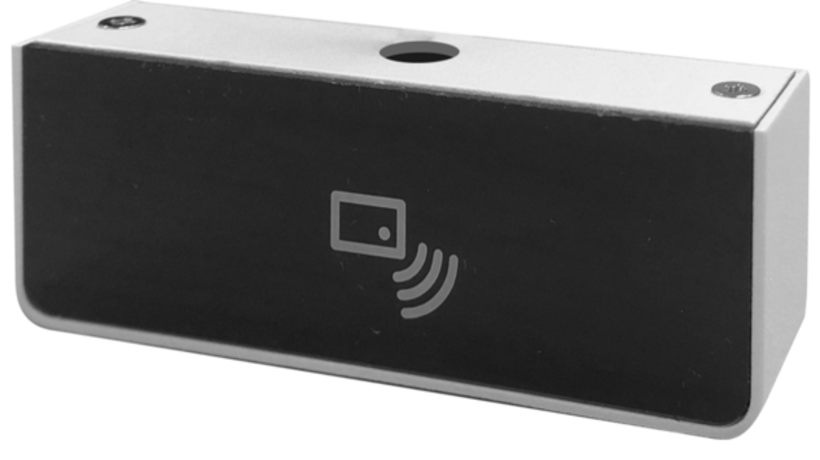

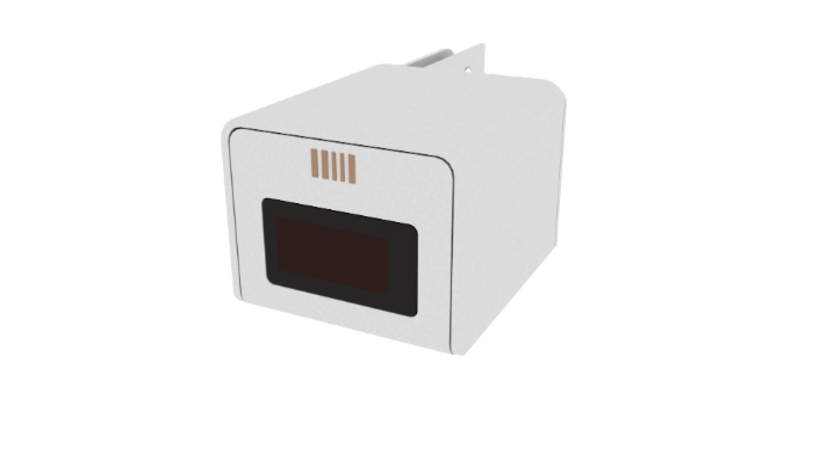

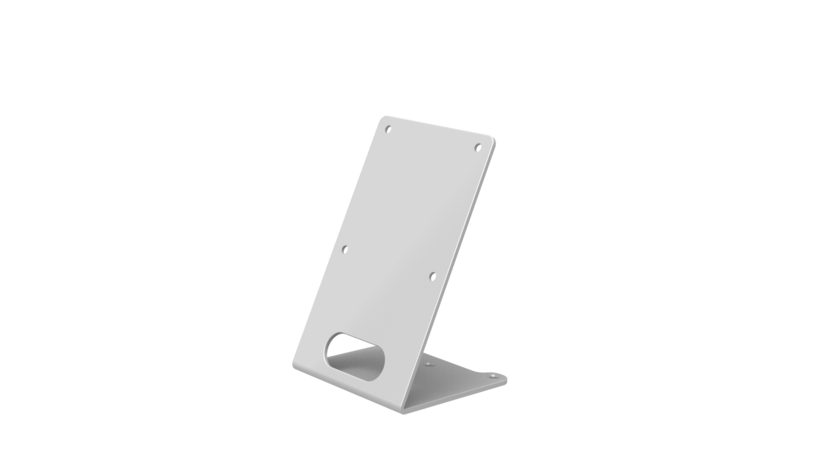

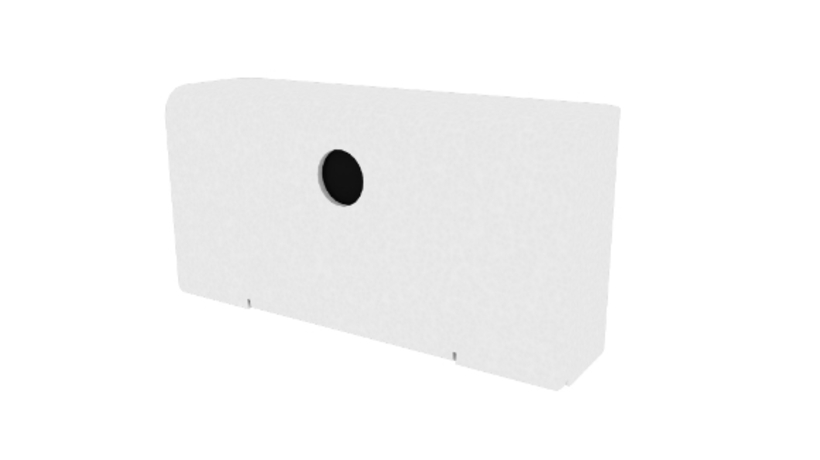

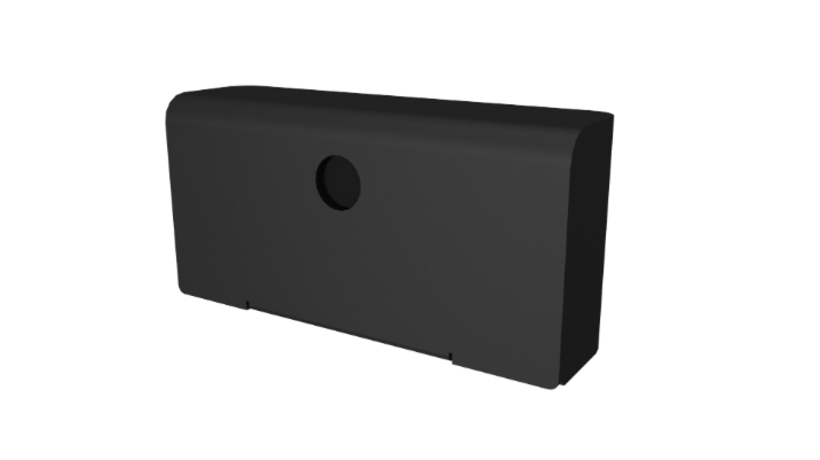

Accessories
