Ultra Slim Digital Signage Solutions

DS-085

Intel Tiger Lake UP3 Ultra-slim Digital Signage Player

Power by Intel Tiger Lake UP3 processor
Powerful graphic engine - Intel iRIS Xe graphics
19mm-thin chassis ideal for space-limited installation
4 HDMI display output, resolution up to 4K(3840 x 2160)
Cable-less design for easy maintenance
Supports WISE-PaaS/DeviceOn and Embedded Software APIs
Supports WebAccess/SignageCMS for intuitive signage content managing, remote monitoring and control
Energy Star® certified for cutting edge energy efficiency & money saving
With Energy Star® certified, make the product more environmental friendly(www.energystar.gov/powermanagement )

Support Links:

Datasheet Download 3D Model Technical Downloads

Specifications

Processor

CPU

Intel Celeron 6305E
Intel Core i3-1115G4E
Intel Core i5-1145G7E
Intel Celeron 6305E
Intel Core i3-1115G4E
Intel Core i5-1145G7E

Chipset

Integrated in SOC
Integrated in SOC
Integrated in SOC
Integrated in SOC
Integrated in SOC
Integrated in SOC

BIOS

AMI UEFI 128 Mbit
AMI UEFI 128 Mbit
AMI UEFI 128 Mbit
AMI UEFI 128 Mbit
AMI UEFI 128 Mbit
AMI UEFI 128 Mbit

Memory

Technology

DDR4 2666MHz
DDR4 2666MHz
DDR4 2666MHz
DDR4 2666MHz
DDR4 2666MHz
DDR4 2666MHz

Max. Capacity

32GB (16GB per SODIMM)
32GB (16GB per SODIMM)
32GB (16GB per SODIMM)
32GB (16GB per SODIMM)
32GB (16GB per SODIMM)
32GB (16GB per SODIMM)

Socket

2 x 260-pin SO-DIMM
2 x 260-pin SO-DIMM
2 x 260-pin SO-DIMM
2 x 260-pin SO-DIMM
2 x 260-pin SO-DIMM
2 x 260-pin SO-DIMM

Thermal Solution

FANLESS
FANLESS
FANLESS
FANLESS
FANLESS
FANLESS

Display

Resolution

3840 x 2160
3840 x 2160
3840 x 2160
3840 x 2160
3840 x 2160
3840 x 2160

I/O Interface

USB2.0

USB3.0

I/O

Audio

1(SPDIF/ Line-out/ Mic-in), support Jack Sense
1(SPDIF/ Line-out/ Mic-in), support Jack Sense
1(SPDIF/ Line-out/ Mic-in), support Jack Sense
1(SPDIF/ Line-out/ Mic-in), support Jack Sense
1(SPDIF/ Line-out/ Mic-in), support Jack Sense
1(SPDIF/ Line-out/ Mic-in), support Jack Sense

HDMI

LAN

2 (RJ-45)
2 (RJ-45)
2 (RJ-45)
2 (RJ-45)
2 (RJ-45)
2 (RJ-45)

LED Indicators

1 x Power, 1 x HDD Access
1 x Power, 1 x HDD Access
1 x Power, 1 x HDD Access
1 x Power, 1 x HDD Access
1 x Power, 1 x HDD Access
1 x Power, 1 x HDD Access

PSW

1 x Power on/off button
1 x Power on/off button
1 x Power on/off button
1 x Power on/off button
1 x Power on/off button
1 x Power on/off button

Serial port

1 x RS-232
1 x RS-232
1 x RS-232
2 x RS-232
2 x RS-232
2 x RS-232

Watchdog Timer

Interval

255-level timer interval, setup by software
255-level timer interval, setup by software
255-level timer interval, setup by software
255-level timer interval, setup by software
255-level timer interval, setup by software
255-level timer interval, setup by software

Output

Interrupt, system reset
Interrupt, system reset
Interrupt, system reset
Interrupt, system reset
Interrupt, system reset
Interrupt, system reset

Physical Characteristics

Dimensions (W x D x H)

180 x 190 x 19 mm
180 x 190 x 19 mm
180 x 190 x 19 mm
180 x 190 x 19 mm
180 x 190 x 19 mm
180 x 190 x 19 mm

Weight

0.87 kg (1.92 lb)
0.87 kg (1.92 lb)
0.87 kg (1.92 lb)
0.87 kg (1.92 lb)
0.87 kg (1.92 lb)
0.87 kg (1.92 lb)

Mounting

VESA/Desk/Wall/Din Rail
VESA/Desk/Wall/Din Rail
VESA/Desk/Wall/Din Rail
VESA/Desk/Wall/Din Rail
VESA/Desk/Wall/Din Rail
VESA/Desk/Wall/Din Rail

Power

Input Voltage

19 V DC-in (ATX/AT mode)
19 V DC-in (ATX/AT mode)
19 V DC-in (ATX/AT mode)
19 V DC-in (ATX/AT mode)
19 V DC-in (ATX/AT mode)
19 V DC-in (ATX/AT mode)

Environment

Relative Humidity

95% @ 40° C (non-condensing), Operating
95% @ 40° C (non-condensing), Operating
95% @ 40° C (non-condensing), Operating
95% @ 40° C (non-condensing), Operating
95% @ 40° C (non-condensing), Operating
95% @ 40° C (non-condensing), Operating

Operational Temperature

0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing
0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing
0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing
0 ~ 55° C
0 ~ 55° C
0 ~ 55° C

Software Development Kit

Operating System

Supports Win7 x64/x86, Win8.1 x64, Win10 x64
Supports Win7 x64/x86, Win8.1 x64, Win10 x64
Supports Win7 x64/x86, Win8.1 x64, Win10 x64
Supports Win7 x64/x86, Win8.1 x64, Win10 x64
Supports Win7 x64/x86, Win8.1 x64, Win10 x64
Supports Win7 x64/x86, Win8.1 x64, Win10 x64

Linux

by Project support
by Project support
by Project support
by Project support
by Project support
by Project support

Signage Software

WISE-PaaS/RMM & WebAccess/IMM
WISE-PaaS/RMM & WebAccess/IMM
WISE-PaaS/RMM & WebAccess/IMM
WISE-PaaS/RMM & WebAccess/IMM
WISE-PaaS/RMM & WebAccess/IMM
WISE-PaaS/RMM & WebAccess/IMM

Certification

EMC

CE, FCC Class B, CCC, BSMI
CE, FCC Class B, CCC, BSMI
CE, FCC Class B, CCC, BSMI
CE, FCC Class B, CCC, BSMI
CE, FCC Class B, CCC, BSMI
CE, FCC Class B, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI
UL, CB, CCC, BSMI
UL, CB, CCC, BSMI
UL, CB, CCC, BSMI
UL, CB, CCC, BSMI
UL, CB, CCC, BSMI

Storage

M.2

M.2 2242 M Key
M.2 2242 M Key
M.2 2242 M Key
M.2 2242 M Key
M.2 2242 M Key
M.2 2242 M Key

Power Requirement

Management

ACPI 3.0
ACPI 3.0
ACPI 3.0
ACPI 3.0
ACPI 3.0
ACPI 3.0

Operating System

Ubuntu

Features & Benefits

Transform Engagement with Advantech’s AI-Powered DS

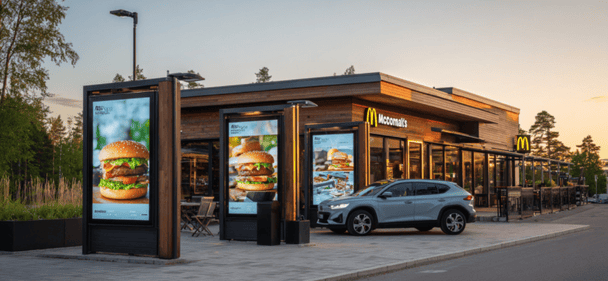

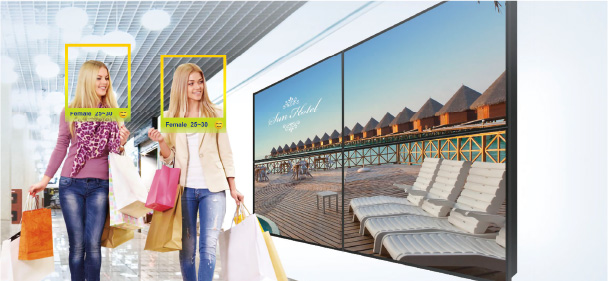

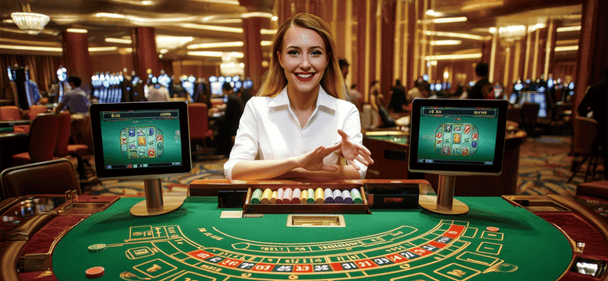

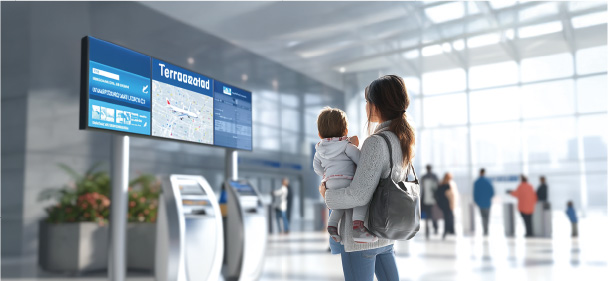

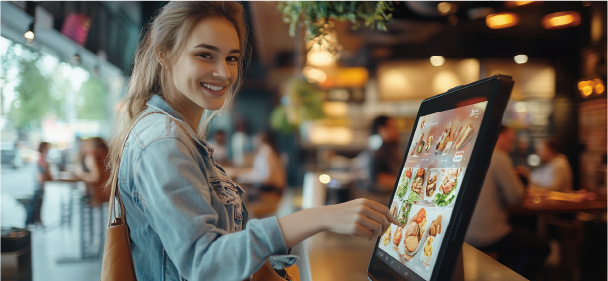

Advantech’s digital signage players are purpose-built to accelerate digital transformation in smart cities and commercial environments. Equipped with high-performance computing, multi-display support, and AI-enhanced interactivity, they enable real-time content delivery and immersive user experiences. Our solutions feature ultra-slim, fanless designs, modular SDM architecture for flexible integration, and industrial-grade durability for 24/7 operation. With DeviceOn, Advantech’s exclusive remote management platform, users gain centralized monitoring, remote updates, and predictive maintenance to simplify operations. In addition, our new product series supports DOOH (Digital-Out-Of-Home) applications, meeting the demanding requirements for high brightness, extreme reliability, and continuous outdoor performance. Whether deployed in retail, hospitality, transportation, or corporate environments, Advantech delivers scalable, future-ready signage solutions that combine performance, reliability, and global support.
