HIT-5 Series

HIT-512

HIT-512 is an 11.6" all-in-one information terminal for healthcare and iServices.

  • Innovative and ultra-slim design for healthcare and hospitality applications
  • All-in-one computer with Intel® Apollo Lake CPU
  • IP65 rated front panel
  • Supports M.2 2230 WiFi / BT modules and M.2 2242 SSDs
  • Supports RFID/NFC/Web Camera/Smart Card Reader
  • Supports LED indicator
  • Rich optional peripherals – Handset/2nd Smart Card Reader, Barcode Scanner/PoE, RFID/MSR
  • Supports 75x75mm VESA mount
  • Dual certification (Medical and ITE)

Enlaces de soporte:

Ficha técnica Descargas Técnicas
  • HIT-512 is an 11.6" all-in-one information terminal for healthcare and iServices.

Especificaciones

Processor
CPU
  • Intel® Apollo Lake J3455 (2M Cache, up to 2.3 GHz)
  • Intel® Apollo Lake J3455 (2M Cache, up to 2.3 GHz)
Hardware
Memory
  • DDR3L x 1, up to 8GB (Default 4GB)
  • DDR3L x 1, up to 8GB (Default 4GB)
Primary Storage
  • M.2 2242 SSD (Default 64GB)
  • M.2 2242 SSD (Default 64GB)
Camera
  • 5MP CMOS with LED Indicator
  • 5MP CMOS with LED Indicator
Bus Expansion
  • Full Mini-PCIe x 1
  • Full Mini-PCIe x 1
Display
Size
  • 11.6" W TFT
  • 11.6" W TFT
Max. Resolution
  • 1366 x 768
  • 1366 x 768
Luminance (cd/m2)
  • 250 cd/m2
  • 250 cd/m2
Contrast Ratio
  • 500:1
  • 500:1
Viewing Angle
  • 90°/90°
  • 90°/90°
Touchscreen
Type
  • Pcap Touch
  • Pcap Touch
I/O Ports
Nurse Call LED
  • x 1 (support 3 color)
  • x 1 (support 3 color)
USB 3.0 ports
  • 2
  • 2
Smart Card Reader
  • 1 (Default), Optional 2nd reader
  • 1 (Default), Optional 2nd reader
RFID
  • 1
  • 1
Audio Jack (TRRS)
  • 1
  • 1
Handset Out (RJ12)
  • 1
  • 1
DC-in
  • 1
  • 1
Power Button
  • 1
  • 1
Audio
Speaker
  • 2 W x 2
  • 2 W x 2
Internal Microphone
  • 1
  • 1
Network
LAN (Isolated)
  • 10/100/1000 RJ-45 x 1
  • 10/100/1000 RJ-45 x 1
Bluetooth
  • BT 4.1 (Default Module)
  • BT 4.1 (Default Module)
WLAN
  • 802.11 a/b/g/n/ac (Default Module)
  • 802.11 a/b/g/n/ac (Default Module)
Mechanical
Mounting
  • VESA 75/100mm
  • VESA 75/100mm
Dimensions (W x H x D)
  • 296 x 190 x 33.4 mm
  • 296 x 190 x 33.4 mm
Weight
  • 1.2 kg
  • 1.2 kg
Option
MSR
  • Optional (Add-on Module)
  • Optional (Add-on Module)
Handset
  • Optional (Add-on Module)
  • Optional (Add-on Module)
Power Supply
Input Voltage
  • 100 ~ 240 VAC, 1.1 ~ 0.45 A @ 47~ 63 Hz
  • 100 ~ 240 VAC, 1.1 ~ 0.45 A @ 47~ 63 Hz
Output Voltage
  • IT or Medical 12~19 VDC, 3.5A
  • IT or Medical 12~19 VDC, 3.5A
Environment
Operating Temperature
  • 0 ~ 35 °C (32 ~ 95 °F)
  • 0 ~ 35 °C (32 ~ 95 °F)
IP Rating
  • IP65 Front Panel
  • IP65 Front Panel
Vibration
  • 1G
  • 1G
Shock
  • 10G Peak Acceleration (11ms duration)
  • 10G Peak Acceleration (11ms duration)
EMC & Safety Cert.
  • CE, FCC, CCC, CB, UL ITE & Medical, EN 60950 & 60601-1 4th Edition approved
  • CE, FCC, CCC, CB, UL ITE & Medical, EN 60950 & 60601-1 4th Edition approved

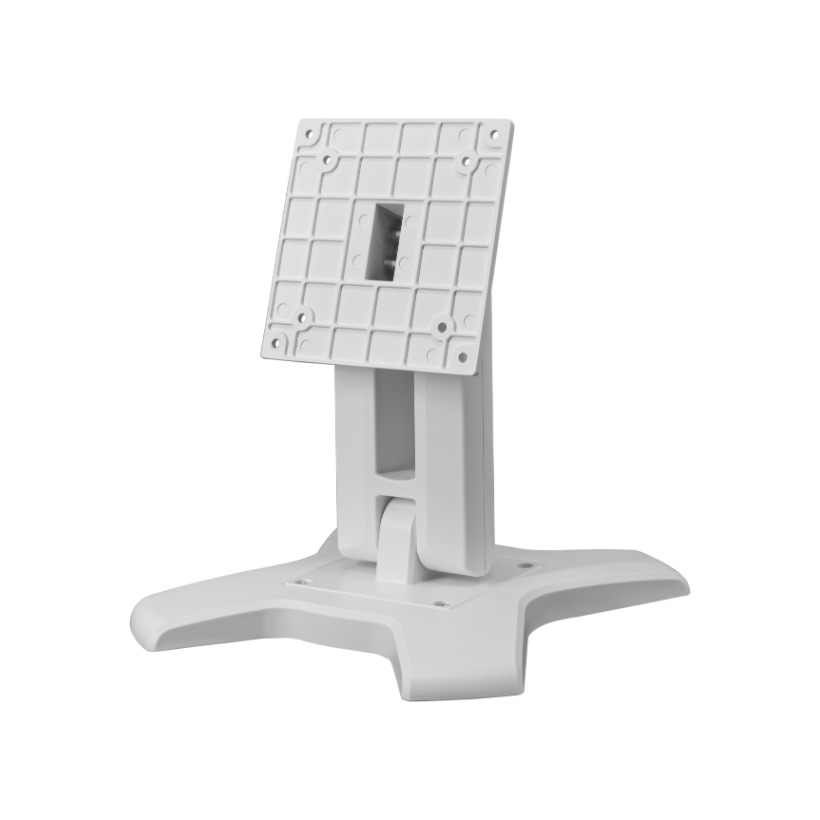

Accesorios
