UBX-300 Series

UBX-330M

NUC-Sized Edge Computer with Intel® Core™ Ultra 7/5 Processors and I/O Expansion, Supporting Intel Arc Graphics and vPro Enterprise on Selected SKUs.

  • Equipped with three AI engines, it provides low-latency and fast response
  • Compact, NUC-sized cubic form factor offers flexible and versatile I/O expansion
  • Empowered by Hailo-8 M.2 AI module up to 26 TOPS
  • Include Intel® Arc™ graphics and vPro® Enterprise or Essentials platform on selected SKUs
  • Support advanced backup and disaster recovery technology
  • Support AI modules through M.2 expansion, delivering efficient edge AI inference
  • Efficient thermal dissipation solution with a quiet acoustic design

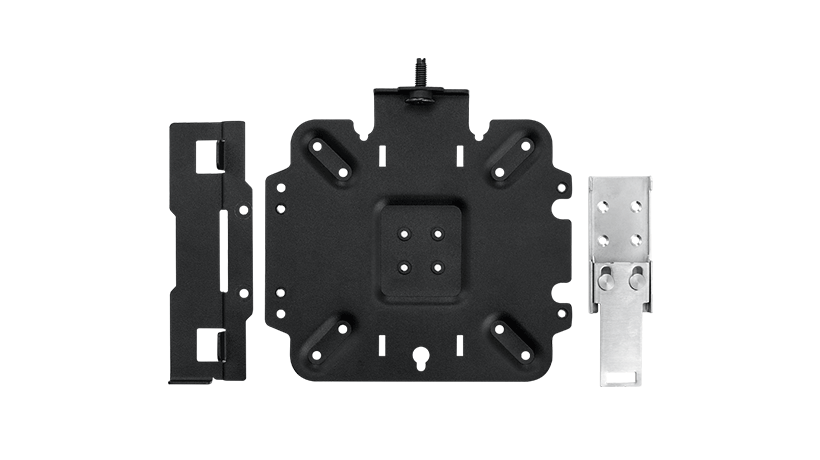

  • Offer a versatile mounting kit compatible with VESA, wall mount, pole mount, DIN rail, and ARM mount options
  • An optional dedicated power adapter bracket available for improved cable management

Certificaciones:

Enlaces de soporte:

Ficha técnica Descargas Técnicas
  • NUC-Sized Edge Computer with Intel® Core™ Ultra 7/5 Processors and I/O Expansion, Supporting Intel Arc Graphics and vPro Enterprise on Selected SKUs.

Especificaciones

Processor System
CPU
  • Intel® Core™ Ultra 5 Processor 125H
  • Intel® Core™ Ultra 5 Processor 135U
  • Intel® Core™ Ultra 7 Processor 155U
  • Intel® Core™ Ultra 5 Processor 125H
  • Intel® Core™ Ultra 5 Processor 135U
  • Intel® Core™ Ultra 7 Processor 155U
OS
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
  • Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
Intel vPro®
  • Intel vPro® Essentials Platform
  • Intel vPro® Enterprise Platform
  • Intel vPro® Essentials Platform
  • Intel vPro® Essentials Platform
  • Intel vPro® Enterprise Platform
  • Intel vPro® Essentials Platform
Memory
Technology
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
  • DDR5-5600
Max. Capacity
  • 48 GB
  • 48 GB
  • 48 GB
  • 48 GB
  • 48 GB
  • 48 GB
Storage
M.2
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
  • 1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
Graphics
Controller
  • Intel® Arc™ Graphics 2.2GHz
  • Intel® Graphics 1.9GHz
  • Intel® Graphics 1.95GHz
  • Intel® Arc™ Graphics 2.2GHz
  • Intel® Graphics 1.9GHz
  • Intel® Graphics 1.95GHz
Expansion
WiFi, Bluetooth
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
  • 1 x M.2 2230 E Key
I/O Interface
Audio
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
  • Mic-in, Line-out
USB Port
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
  • 2 x USB Type A 2.0, 2 x USB 3.2
LAN
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
  • 1 x LAN, up to 2.5 Gbps
Output
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
  • 1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
Power Jack
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
  • 1 x DC 12V
Extendable Slot
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
  • UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
Environment
Operating Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
Mounting
Mounting
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
  • VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
Country of Origin
Manufacturing Plant
  • China
  • China
  • China
  • Taiwan
  • Taiwan
  • Taiwan
