ITxPT Certified Ethernet Switches

  • EKI-9510E-2GMPST

    ITxPT M12 8FE PoE + 2GE Managed Switch, 9~36 VDC

EKI-9510E-2GMPST

ITxPT M12 8FE PoE + 2GE Managed Switch, 9~36 VDC

  • M12 connector with IP67 rugged housing
  • Complies with ITxPT, E-Mark
  • Complies with UN ECE R118 & UN ECE R10
  • Supports PoE IEEE802.3af/at (PoE model)
  • Wide nominal power input range: 12/24VDC; Operating power input range: 9-36VDC
  • Compact size to fit in different narrow spaces
  • Operating temperature: -40 ~ 70°C
  • Support power ignition
  • Support power delay-off

Support Links:

Datasheet Technical Downloads
  • ITxPT M12 8FE PoE + 2GE Managed Switch, 9~36 VDC

Specifications

Certification
EMC
  • CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
EMI
  • CISPR 32, FCC Part 15 Subpart B Class A
EMS
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
Vertical Market
  • ITxPT, E-Mark
Freefall
  • IEC 60068-2-31
Shock
  • IEC 61373
Vibration
  • IEC 61373
Environment
Operating Humidity
  • 5~95%
Relative Humidity
  • 5~95%
Operating Temperature
  • -40 ~ 70°C (-40 ~ 158°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Ethernet Standard
  • IEEE 802.3 , 802.3u , 802.3ab , 802.3z, 802.3x
RJ-45 Port Connector Type
  • M12 (4pin D-Coded) for 10/100Mbps port
    M12 (8 pin X-Coded) for 10/100/1000Mbps
RJ-45 Transmission Speed
  • 10/100/1000 Mbps
RJ-45 Port Number
  • 10
RJ-45 Transmission Distance
  • Up to 100 m
Fiber Port Connector Type
  • NA
Fiber Port Interface
  • NA
Mechanism
Dimensions (W x H x D)
  • 160 x 100 x 70 mm
Enclosure (Metal)
  • Metal shell
IP Rating
  • IP67
Mounting (Wall)
  • Yes
Weight
  • 1.8 kg
MTBF
Method
  • Telcordia, GB
PoE Information
PoE Budget
  • 90W
PoE Port Number
  • 8 (M12 D-Coded) + 2 (M12 X-Coded)
Power
Power Connector Type
  • M12 (5 pin A-coded)
Power Consumption
  • 15W
Power Input (DC)
  • 9 ~ 36 VDC
Power Operating Current
  • 0.625A @ 24 VDC (system)
Redundant Dual Inputs
  • -
Protection
Reverse Polarity
  • Present
Overload Current
  • Present
Switch Properties
Jumbo Frame
  • 10K bytes
MAC Table Size
  • 8K
Packet Buffer Size
  • 4.1M bit
Switch Fabric Speed
  • 5.6Gbps
Warranty
Warranty Period
  • 5 years

Features & Benefits

The new EKI-9508 and EKI-9510 M12 Ethernet switches are built for the future of intelligent transportation

The new EKI-9508 and EKI-9510 M12 Ethernet switches are built for the future of intelligent transportation, delivering ultra-reliable connectivity in the toughest environments. Available in 8-port and 10-port models, they are certified by ITxPT, E-Mark, and EN50155, ensuring seamless deployment across public transport, in-vehicle, and railway networks. Designed for maximum durability, their IP67-rated housing and IEC 61373 compliance guarantee resilience against shock, vibration, and extreme conditions. Offering both managed and unmanaged options with Fast or Gigabit Ethernet, PoE models deliver up to 90W to power cameras, wireless APs, and more. With compact and secure M12 connectors, installation is effortless—even in space-constrained setups—making these switches the ultimate choice for mission-critical mobility networks.

Engineered for Intelligent Mobility with Reliable Network Connectivity

Supports Vehicle Ignition with Delayed Power-Off

Supports Vehicle Ignition with Delayed Power-Off

  • The EKI-9508/9510-ST series supports the ignition function, allowing it to recognize the vehicle’s ignition on/off status.
  • The Ethernet switches remain powered on for 60 minutes after key-off.

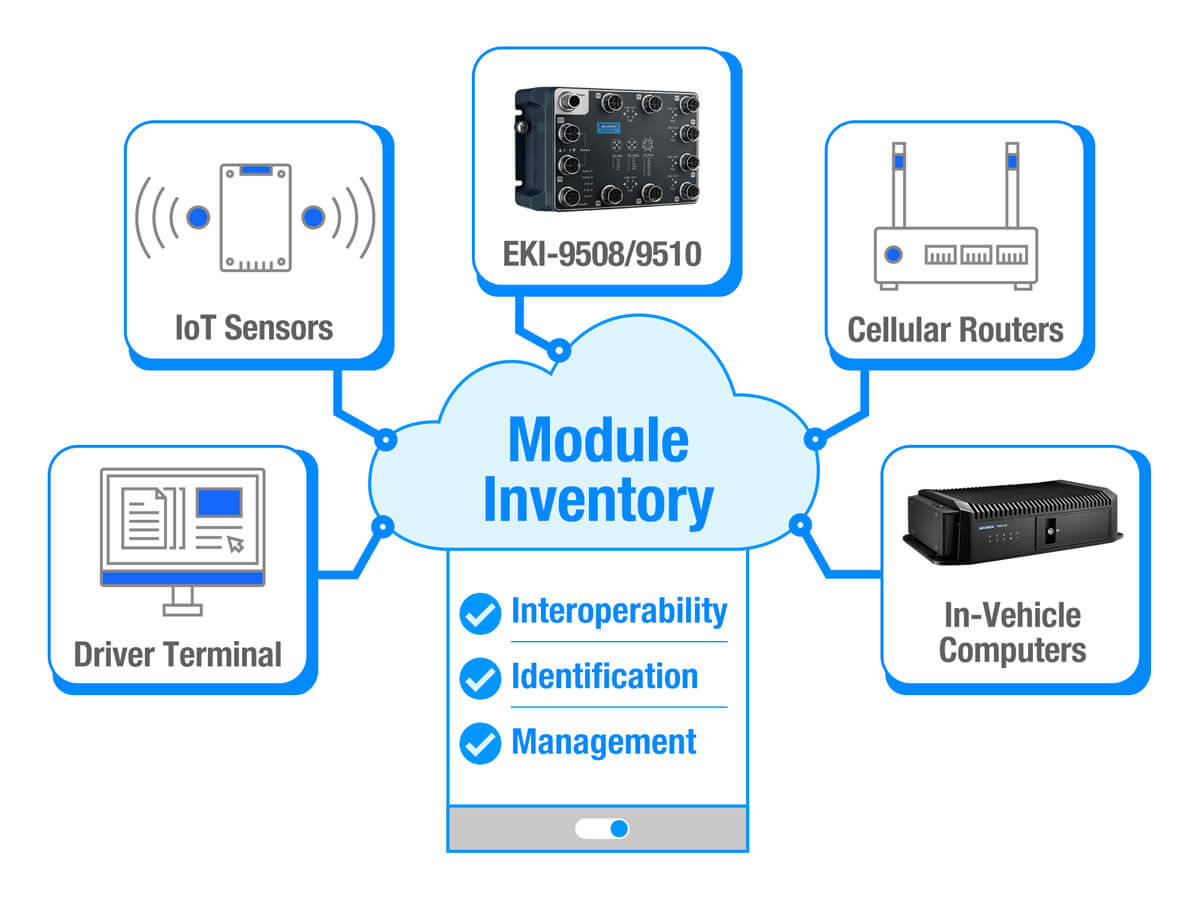

Supports Software ‘Module Inventory’

Supports Software ‘Module Inventory’

The ITxPT framework focuses on interoperability between different systems and vendors. A module inventory supports this by ensuring that all modules are correctly identified and can communicate with each other across different platforms.

E-Mark R10 & R118 Certification

E-Mark R10 & R118 Certification

  • E-Mark R10 primarily concerns Electromagnetic Compatibility (EMC).
  • E-Mark R118 concerns the burning behavior of materials and tests their resistance to flame propagation.

With R10 and R118 certifications, the EKI-9508/9510-ST series is approved for EMC and fire protection in in-vehicle applications.

Compact Size

Compact Size

Easily fits into original space for refurbishment or upgrade demands.

IP67 Rating

IP67 Rating

Suitable for outdoor and industrial environments exposed to harsh elements.

M12 Connectors

M12 Connectors

Provides strong, vibration-resistant connections that reduce the risk of disconnection or failure.

Wide Operating Temperatures

Wide Operating Temperatures

 Ensures reliable performance in extreme conditions.

Our Versatile Applications Across In-Vehicle Communications

Intelligent Bus

Intelligent Bus

ITxPT certification guarantees that the EKI-9508/9510-ST series seamlessly connects with other certified systems, fostering compatibility and expanding partnership opportunities in the global transportation sector.

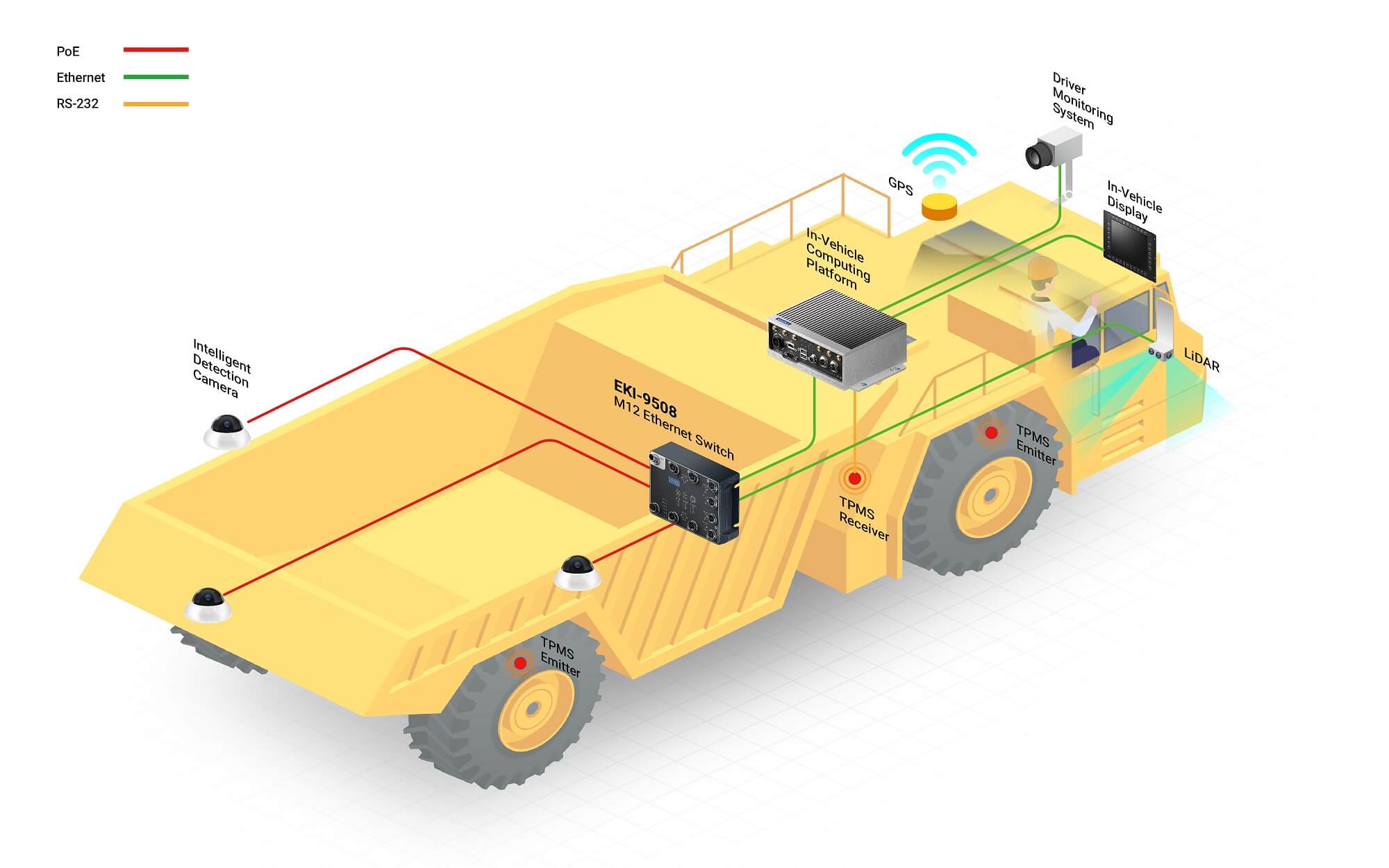

Heavy Duty Vehicle

Heavy Duty Vehicle

The EKI-9508/9510 series is engineered with M12 lockable connectors, providing rugged, vibration-resistant connectivity to maintain reliable performance in demanding conditions.
