UBX-100 Series

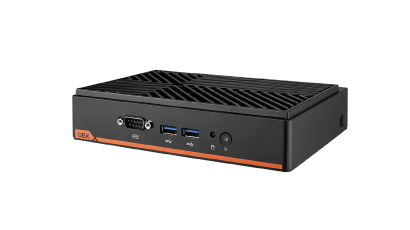

UBX-110K-IOT

4K UHD fan less edge computer with Win 11 LTSC, Intel i5-1145G7E CPU, 16GB RAM, 512GB SSD, Wi-Fi, US power cord, Black

  • Built-in an Intel® N97 or Core™ i3-N305 processor
  • Built-in a TPM 2.0 chip for data encryption enhancement
  • Supports triple displays to expand the visible range and provide detailed video content
  • Supports two M.2 2280 SATA SSD expansions
  • Supports up to 4K UHD for each video output
  • The thermal isolation top cover ensures safe installation and user touch
  • Supports Windows 10 IoT LTSC 2021, Windows 11 IoT, or Linux

Certifications:

Support Links:

Datasheet Technical Downloads
  • 4K UHD fan less edge computer with Win 11 LTSC, Intel i5-1145G7E CPU, 16GB RAM, 512GB SSD, Wi-Fi, US power cord, Black

Specifications

Processor System
CPU
  • Intel® N97
OS
  • Windows 11 IoT Enterprise 64bit
Storage
  • 256GB M.2 SSD
Memory
Technology
  • DDR5-4800
Max. Capacity
  • 8 GB
Image Resolution
Triple Displays
  • 4K UHD (4320 x 2160 @ 60Hz)
Dual Displays
  • 4K UHD (4320 x 2160 @ 60Hz)
Expansion
WiFi, Bluetooth
  • 1 x M.2 2230
Storage
  • 2 x M.2 2280
I/O Interface
Audio
  • 1 x Line-out
COM
  • 1 x DB9
USB Port
  • 1 x USB-C, 4 x USB 3.2 Gen2 Type A
Ethernet
  • 2 x RJ-45
Output
  • 1 x USB-C, 2 x HDMI2.1
Power Jack
  • 1 x DC 12V
Power Supply
Operating Temperature
  • 0~ 45 °C
Mounting
Mounting
  • VESA, Desk, Wall
