UTC-520 Series

UTC-520J-IOT

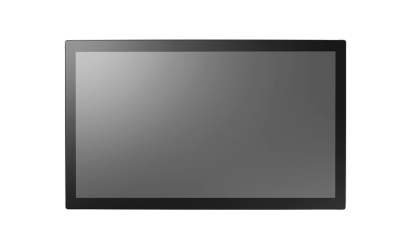

21.5" PCAP Touch Computer with Win 11 LTSC, Intel Celeron J6412 CPU, 8GB RAM, 256GB SSD, Wi-Fi, US power cord, Black

  • Low-power, fanless system design
  • Built-in Intel® Celeron® J6412. Support TPM 2.0
  • 21.5" monitor with 16:9 widescreen display and optional 400 nits LCD panel
  • IP65-rated front panel for water and dust resistance
  • All-in-one aluminum extrusion design
  • Supports both landscape and portrait screen orientations
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Side groove design for integrating peripherals
  • Supports Windows, Android, Linux, and ChromeOS Flex

Support Links:

Technical Downloads
  • 21.5" PCAP Touch Computer with Win 11 LTSC, Intel Celeron J6412 CPU, 8GB RAM, 256GB SSD, Wi-Fi, US power cord, Black

Specifications

Display
Size
  • 21.5" TFT LCD
Max. Resolution
  • FHD (1920 x 1080)
Brightness
  • 250 cd/m²
Touch Screen
Type
  • Projected Capacitive
Processor System
CPU
  • Intel® Celeron® J6412
RAM
  • 8G DDR4
Storage
  • 1 x 2.5 internal SATA HDD bay
OS
  • Windows 11 IoT Enterprise 64bit
TPM
  • TPM 2.0
I/O Interface
Serial Port
  • 2 x COM (RS-232)
Ethernet
  • 2 x Gigabit Ethernet ports
Output
  • 1 x HDMI / 1 x DP
Audio
  • 1 x Line-out, 1 x Mic-in
Speaker
  • 2 x 3W Speaker
Extendable Slot
  • 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module
    1x M-Key support SATA M.2 2242 module
Power
Input Rating
  • 12 V/7 A (84 W ITE Adapter)
Environment
System Protection
  • IP65 front panel
Operating Temperature
  • 0~40° C
Operating Humidity
  • 95% @ 40 °C/104 °F, non-condensing
Shock
  • 10G peak acceleration (11 msec. duration)
Vibration
  • 1G

Accessories
