Analog Input

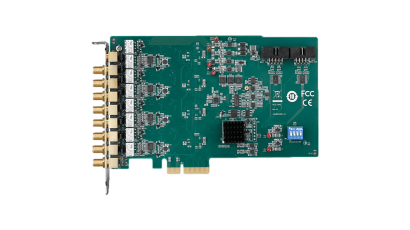

PCIE-1843

8/4-ch, 14-bit, 20MS/s/ch Simultaneous Analog Input PCI Express DAQ Card

  • 8 or 4 x Simultaneously Analog Inputs, up to 20 MS/s
  • 14-bit resolution
  • Supports digital and analog triggers
  • Wide input range up to 20 Vpp (±10 V range)
  • Onboard FIFO memory (65,536 samples)

Support Links:

Datasheet Technical Downloads
  • 8/4-ch, 14-bit, 20MS/s/ch Simultaneous Analog Input PCI Express DAQ Card

Specifications

Analog Input
Channels
  • 8
  • 8
Resolution(Bits)
  • 14-bit
  • 14-bit
Sampling Rates(S/s)
  • 20 MS/s (per channel)
  • 20 MS/s (per channel)
General
Programming Language
  • C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
